TLS architecture
Deep Security Agents version 10.0 or later installed on any platform communicate
with Workload Security over TLS 1.2.
In addition, Deep Security Agents version 9.6 installed on the following
platforms communicate with Workload Security over TLS 1.2:
- Windows 2000
- Linux Debian 6
- SuSE 10. Note that the Deep Security Agent 9.6 support extension for this platform expired on 23-May-2021.
- Ubuntu 12.04
TLS 1.2 is also supported on Deep Security Agents version 9.0 on the following
platforms:
- AIX. Note that the Deep Security Agent 9.0 support extension for this platform expired on 31-Dec-2020.
- Solaris. Note that the Deep Security Agent 9.0 support extension for this platform expired on 31-Dec-2019.
For complete details on platform support, including the extensions expiration
dates, see the following:
Similarly to Deep Security Agents, later versions of third-party applications use
TLS 1.2, while earlier ones use earlier TLS versions.

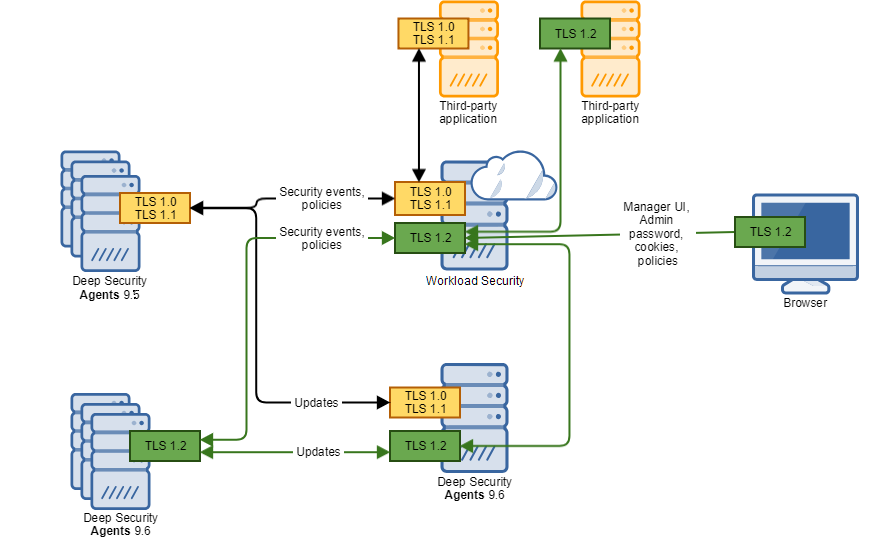

The following diagram shows the TLS communication in a Workload Security
environment:
Enable the TLS 1.2 architecture
To enable TLS 1.2 in your Workload Security environment, you may need to upgrade
your agents and relays based on the following guidelines as well as the
information provided in TLS architecture:
- If you have Deep Security Agents version 9.6 in any environment other than Windows 2000, Linux Debian 6, SuSE 10, or Ubuntu 12.04, you must upgrade them to version 10.0 or later.
- If you have version 9.6 relays in any environment other than Windows 2000, Linux Debian 6, SuSE 10, or Ubuntu 12.04, you must upgrade them to version 10.0 or later.
- If you have Deep Security Agents version 9.5 or earlier in any environment, you must upgrade them to version 10.0 or later.
- If your environment has relays for Deep Security Agent version 9.5 or earlier, you must upgrade them to version 10.0 or later.
First, upgrade your
agents.
Next, upgrade
your relays.
Next steps: deploy new agents and relays
After setting up your TLS 1.2 environment, if you decide to use a deployment script (among other methods) to deploy new agents
and relays, you should adhere to a number of guidelines.
Guidelines for using deployment scripts
Procedure
- If you are deploying an agent or relay onto Windows computers, use PowerShell 4.0 or later, which uses TLS 1.2 to communicate with the manager or relay to obtain agent software and install it.
- If you are deploying an agent or relay onto Linux, use curl 7.34.0 or later. This version uses TLS 1.2 to communicate with the manager or relay to obtain agent software and install it.
- If you are deploying onto Red Hat Enterprise Linux 6 which uses curl 7.19 by default, upgrade to curl 7.34.0 or later. If you cannot upgrade curl, see the next step for a workaround.
- If you are deploying onto Windows XP, 2003, or 2008, where PowerShell 4.0 is not supported,
remove the following lines:
#requires -version 4.0 [Net.ServicePointManager]::SecurityProtocol = [Net.SecurityProtocolType]::Tls12;
