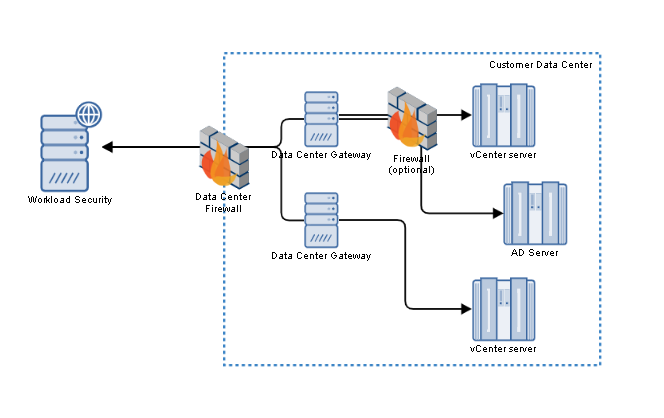

To enable Workload Security to get an inventory of your computers from your VMware
vCenter or Active Directory servers, you must put a data center gateway between them,
as shown in the following diagram.
The data center gateway proxies the connections.

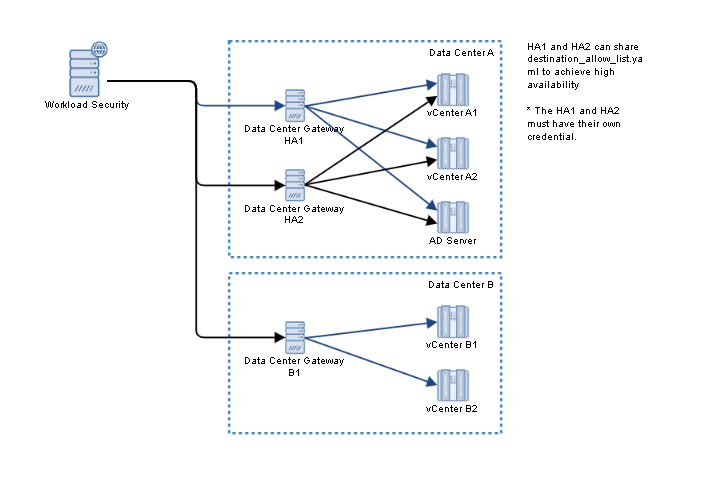

For high availability (HA) in case of network interruptions or component failures,
you can also deploy multiple data center gateways, as shown in the following diagram.
Data center gateways are supported on the following platforms:
Platform
Data center gateway version
Red Hat Enterprise Linux 7
1.0.45 and earlier
Red Hat Enterprise Linux 8
1.0.45 and earlier
Red Hat Enterprise Linux 9
1.0.51 and later *
Ubuntu Linux 18.04
1.0.45 and earlier
Ubuntu Linux 20.04
1.0.45 and earlier
Ubuntu Linux 22.04
1.0.51 and later *
* If you try to install earlier versions of the data center gateway on this platform,
you can run into known library compatibility issues. For information on how to resolve
these issues, see Troubleshooting.
During installation, you need to configure the data center gateway with its authentication
credentials. Because these credentials do not belong to your user account, an administrator
must grant special permissions to access them.

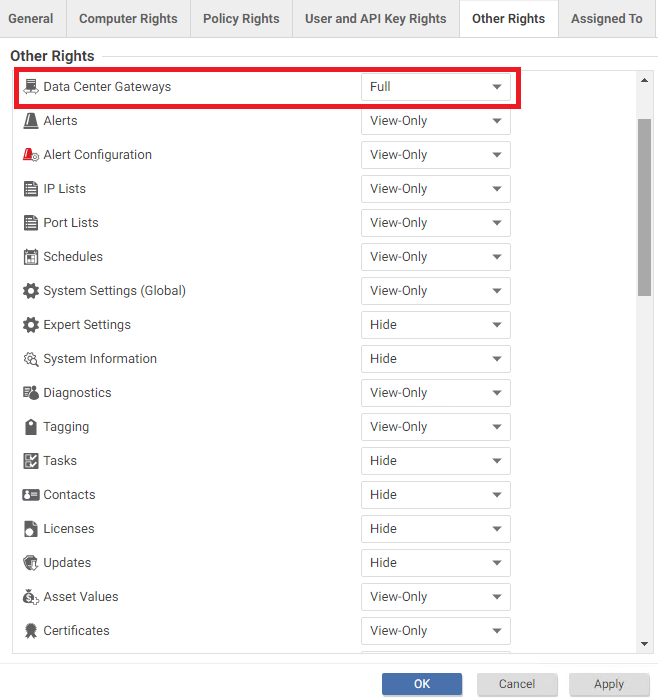

On the Workload Security console, go to Administration → User Management → Roles.
Edit the role of the user who will download credentials for the data center gateways.
Select Properties → Other Rights. For Data Center Gateways, select Full.
Download the data center gateway software
For Red Hat Enterprise Linux, download an RPM file.
For Ubuntu, download a DEB file.
The FIPS package is intended for the government deployments of the data center gateway.
This package is compatible with Ubuntu Pro FIPS 20.04 on AWS. To use this package,
ensure that you have the Ubuntu FIPS for AWS | Ubuntu image with the FIPS package in your environment.
This version and later versions support Red Hat Enterprise Linux 9 and Ubuntu 22.04.Earlier
versions only support Red Hat Enterprise Linux 8 and Ubuntu 20.04, and do not support
Red Hat Enterprise Linux 9 and Ubuntu 22.04.
Updated third party libraries.This version and earlier support Red Hat Enterprise
Linux 8 and Ubuntu 20.04. Starting from version 1.0.51, the Data Center Gateway supports
Red Hat Enterprise Linux 9 and Ubuntu 22.04.Versions 1.0.45 and earlier do not support
Red Hat Enterprise Linux 9 and Ubuntu 22.04.
Data center gateway supports proxy to connect to Trend Micro required internet facing
services and internal vCenter or Active Directory server destinations.
Each credential file contains keys and identifiers that its data center gateway uses
to authenticate and communicate with Workload Security.
On the Workload Security console, go to Administration → System Settings → Data Center Gateway.
Click New.
Enter a Display Name.
Click Next.
Click Download Credential File. Do not change the name of the file. It is required by the installer.
Repeat the previous steps to download one credential file for each data center gateway
that you install.
Tip
Only use a credential file with its own data center gateway. Even data center gateways
that are deployed as HA pairs have unique credential files. Copying the same file
to multiple installations could lead to unexpected behavior. In addition, keep the
credential files in a secure place and use permissions to restrict access. Keys are
secrets, similar to passwords. Unauthorized access can result in security compromise.
Configure the vCenter and Active Directory servers and proxies
During installation, you need to provide a list of VMware vCenter or Microsoft Active
Directory servers to which the data center gateway connects (if applicable to your
setup). Use a plain text editor to write the list. The list must be in YAML format
and named destination_allow_list.yaml.
Use a linter to verify that the list is in valid YAML format. Invalid files cannot
be used by the installer.
Verify that the data center gateway can reach all network addresses in the list. If
data center gateways must connect through a proxy to the Internet, or to the internal
network's vCenter or Active Directory servers, then also configure the data center
gateway to use the proxies.
For example, destination_allow_list.yaml could contain the following:
The gateway_proxy section defines the proxy that the data center gateway uses to connect to Workload
Security.
The destinations section defines the vCenter or Active Directory servers and the proxies used to connect
to them (if any).
HostName is the identifier that is used to add vCenter or Active Directory servers in the
Workload Security console or API.
Each HostName must be unique. If the domain name or IP address point to the same vCenter or Active
Directory server as another HostName, it can cause unexpected behaviors on managed agents.
Username and Password are the login that the data center gateway uses to connect to a proxy. Omit them
if no authentication is required.
WARNING
Keep destination_allow_list.yaml in a secure place and use permissions to restrict access. It contains passwords.
Unauthorized access can result in security compromise. In addition, remember that
each HostName must be unique. If the domain name or IP address point to the same vCenter/Active
Directory server as another HostName, it can cause unexpected behaviors on managed agents.
To prevent duplication if multiple HostName entries resolve to the same IP address, only the first domain name takes effect.
Domain names take precedence over IP addresses. For example, given the following configuration,
the data center gateway can communicate with a vCenter server at the hostname vc1.dc.internal:
# Both "vc1.dc.internal" and "vc1.dc.example.com" resolve to 192.168.100.1
destinations:
- HostName: "192.168.100.1" # Does not take effect because hostnames take precedence over IP addresses
Port: 443
- HostName: "vc1.dc.internal" # Takes effect
Port: 443
- HostName: "vc1.dc.example.com" # Does not take effect because it resolves to the same IP address as previous hostname
Port: 443
Install the data center gateway
On the server where you want to install the data center gateway, upload the installer,
authentication credentials, and configuration file, and then enter the installer
command:
On Red Hat Enterprise Linux: sudo
DCGW_CRED_PATH="</absolute/path/to/credentials.json>"
DCGW_ALLOW_LIST_PATH="</absolute/path/to/destination_allow_list.yaml>"
rpm -ivh /path/to/rpm/file
On Ubuntu: sudo
DCGW_CRED_PATH="</absolute/path/to/credentials.json>"
DCGW_ALLOW_LIST_PATH="</absolute/path/to/destination_allow_list.yaml>"
apt install /path/to/deb/file
If any of the following error messages appear, correct the problem and try again.
Error Message
Possible Cause
Solution
File path for
credentials.json
is required, please set the
variable
DCGW_CRED_PATH
to proceed
The parameter
DCGW_CRED_PATH
was not assigned during
installation.
Set the variable
DCGW_CRED_PATH
with the complete path of
the
credentials.json
file.
File name should contains credentials or destination_allow_list file
extension
DCGW_CRED_PATH
or
DCGW_ALLOW_LIST_PATH
does not contain the required file
name.
Verify that the value of
DCGW_CRED_PATH
ends with the file
name
credentials.json
, and the value of
DCGW_ALLOW_LIST_PATH
ends with the file name
destination_allow_list.yaml
.Do not modify these file names.
No such file, please use
readlink -f
to get absolute path
for
credentials.json
or
destination_allow_list.yaml
The given path for
DCGW_CRED_PATH
or
DCGW_ALLOW_LIST_PATH
did not contain the appropriate
file.
Use the command
readlink -f
to verify the correct,
complete path of
credentials.json
or
destination_allow_list.yaml
.
When the installation has succeeded, either delete credentials.json and
destination_allow_list.yaml or back them up to a secure location. The
installer copies them to /var/opt/c1ws-dcgateway/conf/credentials.json and
/var/opt/c1ws-dcgateway/conf/destiantion_allow_list.yaml with correct
permissions. You do not need to keep the original files.
To determine if the data center gateway is active (its process is running), use SSH
or Remote Desktop to connect to its server and then enter one of the following commands:
journalctl -u c1ws-dcgw.service -f
or:
systemctl status c1ws-dcgw
It should display the status, and which vCenter or Active Directory servers have been
added:
Also enter the following command to verify that the error log is empty:
less +G c1ws-dcgw-error.log
Verify the network connections for a data center gateway
To verify that vCenter or Active Directory server's port is open and that it is reachable
from the data center gateway, log into the data center gateway server and enter the
following command:
nc -v SERVER_HOST_IP SERVER_HOST_PORT
Where:
SERVER_HOST_IP is the hostname or IP address of the vCenter or Active
Directory server.
SERVER_HOST_PORT is the listening port number. By default, it is 443
for vCenter, and 389(StarTLS)/636(LDAPS) for Active Directory.
The connection test should succeed.
If it does not succeed, verify that the port number is open. Also verify DNS settings
and
any routers, firewalls, and proxies between them. If there is a proxy, the connection
must
succeed to the proxy, not directly to the vCenter or Active Directory server.
If the connection test shows that the servers are reachable, but Workload Security
is still
not receiving data, then examine the data center gateway error log and logs that show connection attempts:
less +G c1ws-dcgw.log
It should show connection attempts to both vCenter or Active Directory servers
(destination) and Workload Security FQDNs. Verify the configured host names and port numbers.
Upgrade the data center gateway
On the server where you want to upgrade the data center gateway, upload the RPM or
DEB file, and then enter the upgrade command:
On Red Hat Enterprise Linux:
sudo rpm -U <new data center gateway installer rpm>
On Ubuntu Linux:
sudo apt --only-upgrade install ./<new data center gateway installer deb>
