Procedure

1. Click Start → ServerProtect Management Console.
2. Do one of the following:
   • Click CM Agent Setting on the side bar.
   • Click Do → Control Manager (CM) Agent Setting on the main menu.

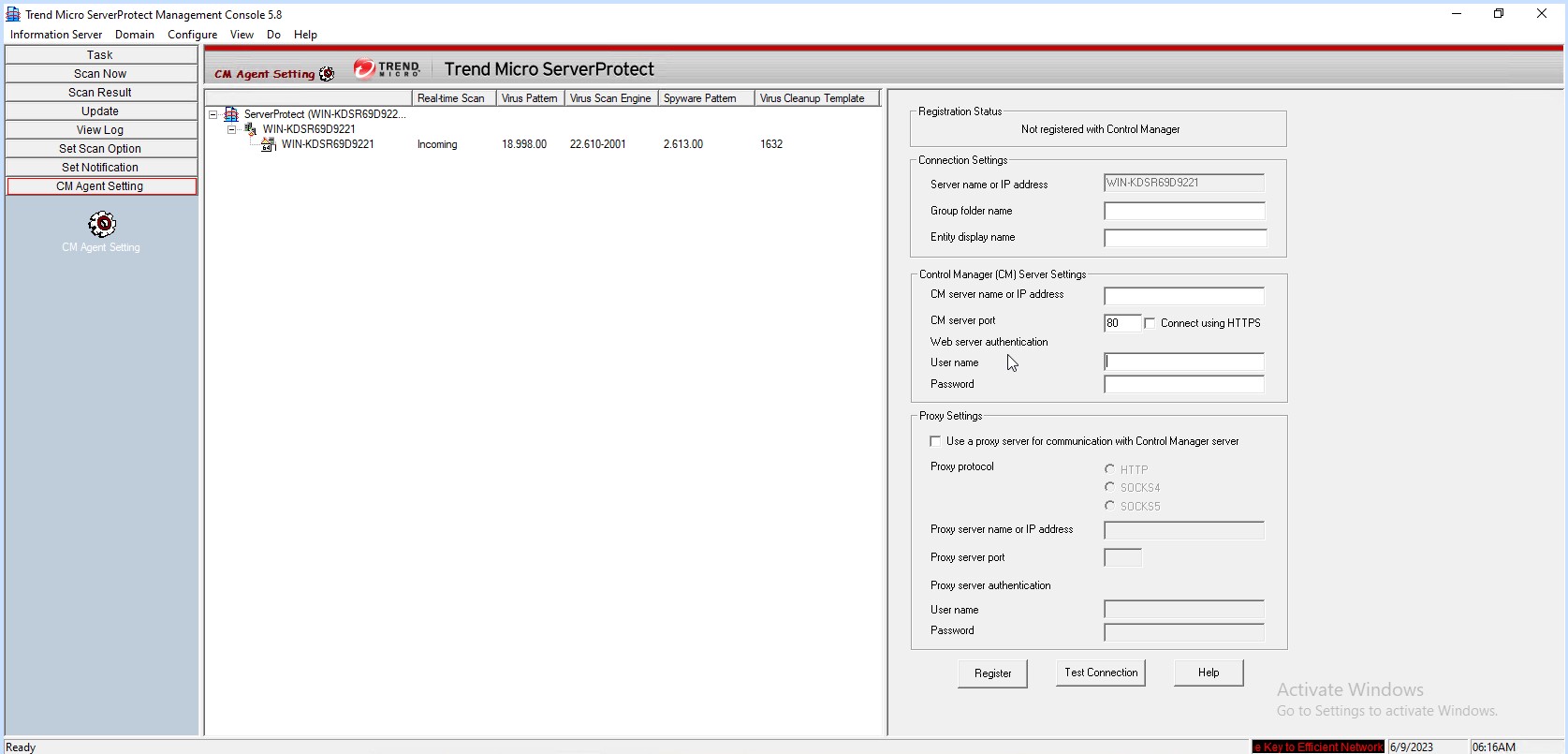

   The CM Agent Setting screen appears. The server Registration Status is Not Registered with Control Manager.



3. Under Connection Settings section on the right pane, configure the following fields:
   • Group folder name: Type a descriptive name that identifies ServerProtect in the Control Manager product tree. The maximum length of Group folder name is 19.
   • Entity display name: Type the name of the ServerProtect Information Server. Choose this name carefully because this is the name that will display on the Control Manager server Product Directory to identify the ServerProtect Information server. A unique and meaningful name will help you to quickly identify the ServerProtect server in the Product Directory of Control Manager. The maximum length of Entity display name is 64 characters.

     Note The Server name or IP address field automatically fills the host name or the IP address of the computer on which you have installed ServerProtect.

4. Under Control Manager (CM) Server Settings section, specify the following:
   • CM server name or IP address: Type the Control Manager (CM) server name or IP address in this field.
   • CM server port: Type the Control Manager (CM) server port number that the MCP agent uses to communicate with Control Manager.
   • Select Connect using HTTPS, if you have Control Manager security set to medium (HTTPS and HTTP communication is allowed between Control Manager and the MCP agent of managed products) or high (Only HTTPS communication is allowed between Control Manager and the MCP agent of any managed products).
   • User name and Password: If your network requires authentication, type the authentication information for your Internet Information Services (IIS) server.

   Note If you use IIS server authentication, you cannot set ServerProtect to update components from Control Manager. You must specify the URL of an update server (either the Trend Micro ActiveUpdate server or the one you set up) as the download source in the Scheduled Update or Manual Update screen.

5. If you use a proxy server to access the Trend Micro Control Manager server, select Use a proxy server for communication with Control Manager server under Proxy Settings section, and then configure the following:
   • Proxy Protocol: Select a proxy protocol.
   • Proxy server name or IP address: Type the proxy server name or its IP address.
   • Proxy server port: Type the proxy server’s port number.
   • User name and Password fields: If the proxy server requires authentication, type the user name and password for the proxy server.
6. Click Test Connection to verify that ServerProtect can connect to the Control Manager server using the information you have provided. If ServerProtect is unable to connect to the Control Manager server, check the settings that you have provided. Also, check the connection between the ServerProtect computer and the Control Manager server.
7. Click Register to save the settings and register ServerProtect.
