Common scenarios for handling SMTP traffic
|
Single Device
|
Multiple Devices
|
|
|
At the Gateway
|
The only setup if you plan to use Sender Filtering with the device.

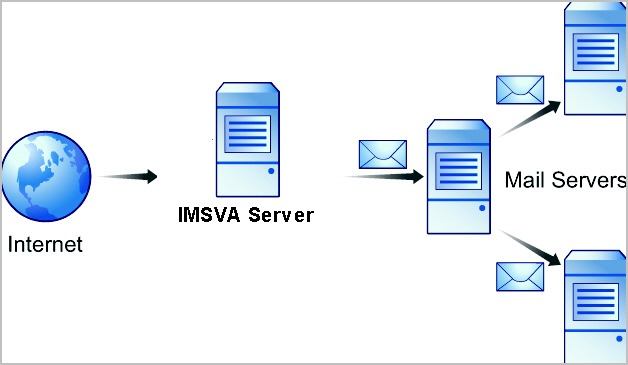

IMSVA is deployed at the
gateway to provide antivirus, content filtering, spam prevention and
Sender Filtering services, which include Network Reputation Services
and IP Profiler. See Single IMSVA device at the gateway.
|

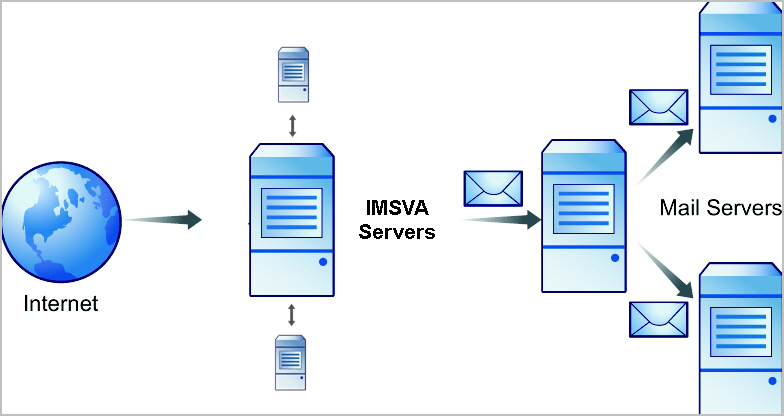

The only setup if you plan to use Sender Filtering with at least one
of the devices. You can enable or disable services on different
devices. See the following:
|
|
Behind the Gateway
|

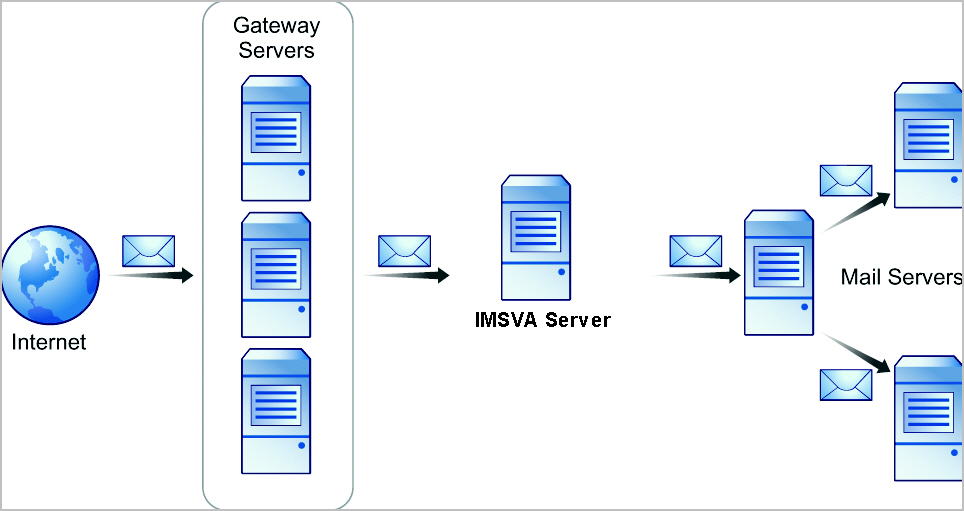

The most common setup. IMSVA is
deployed between upstream and downstream MTAs to provide antivirus,
content filtering and spam prevention services. See Single IMSVA device behind the
gateway.
|

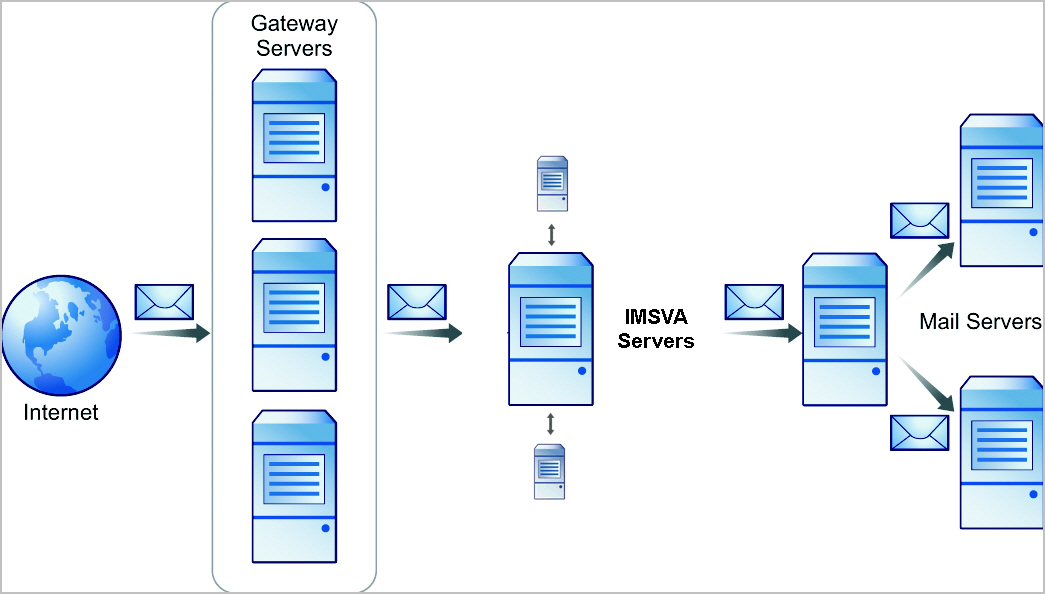

The most common group setup. IMSVA devices are deployed between upstream and downstream MTAs to
provide antivirus, content filtering and spam prevention services.
You can enable or disable services on different devices. See the
following:
|
|
Trend Micro Control Manager scenario
|
||
|
If you have multiple groups, you can use Trend Micro Control Manager
(TMCM) to manage the devices.
|
||
