Configuring east-west security is necessary to enable the networking functionality
required for the Integrity Monitoring, Intrusion Prevention, Firewall, and Web Reputation
features.
Follow the steps below to configure east-west security:
Add a service profile
-
In NSX-T Manager, click Security at the top, toggle to POLICY, and then on the left, find Settings and click Network Introspection Settings.
-
In the main pane, click SERVICE PROFILES.
-
From the Partner Service drop-down list, select Trend Micro Deep Security if it is not already selected.
-
Click ADD SERVICE PROFILE and fill out the fields as follows:
-
For the Service Profile Name, specify a name. Example:
dsva-service-profile-ni
. -
For the Service Profile Description, enter a description. Example:
Deep Security Service Profile for Network Introspection
. -
For the Vendor Template, select Default (EBT)_Network. This template was loaded at the same time as the Trend Micro Deep Security service.
-
-

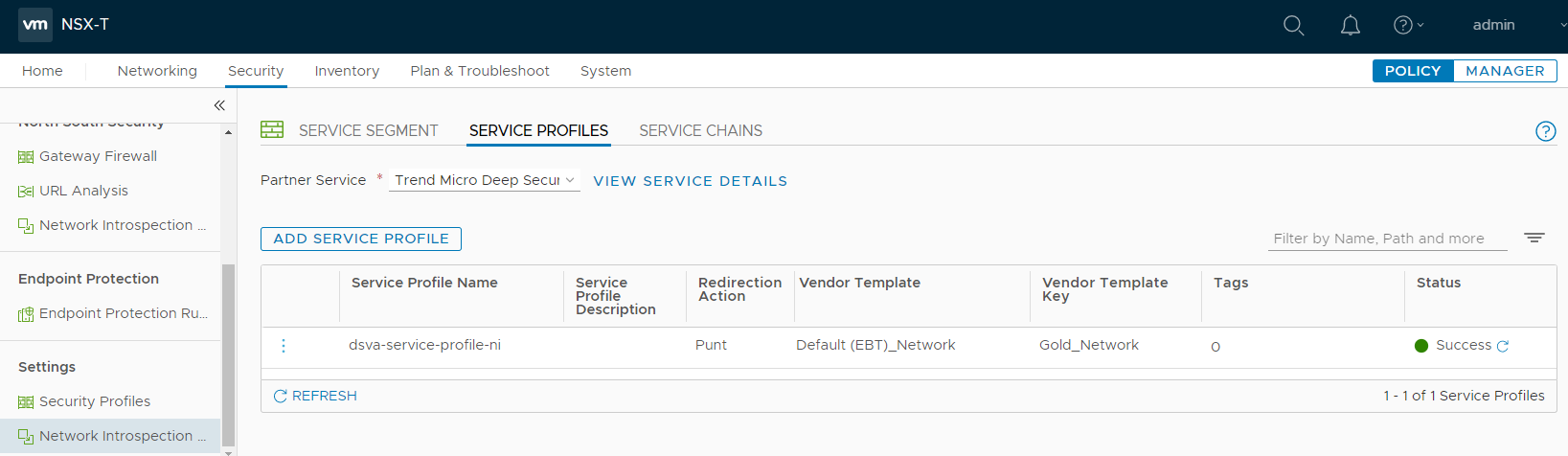

The ADD SERVICE PROFILE page should now look similar to the following:
-
Click SAVE.
Add a service chain
-

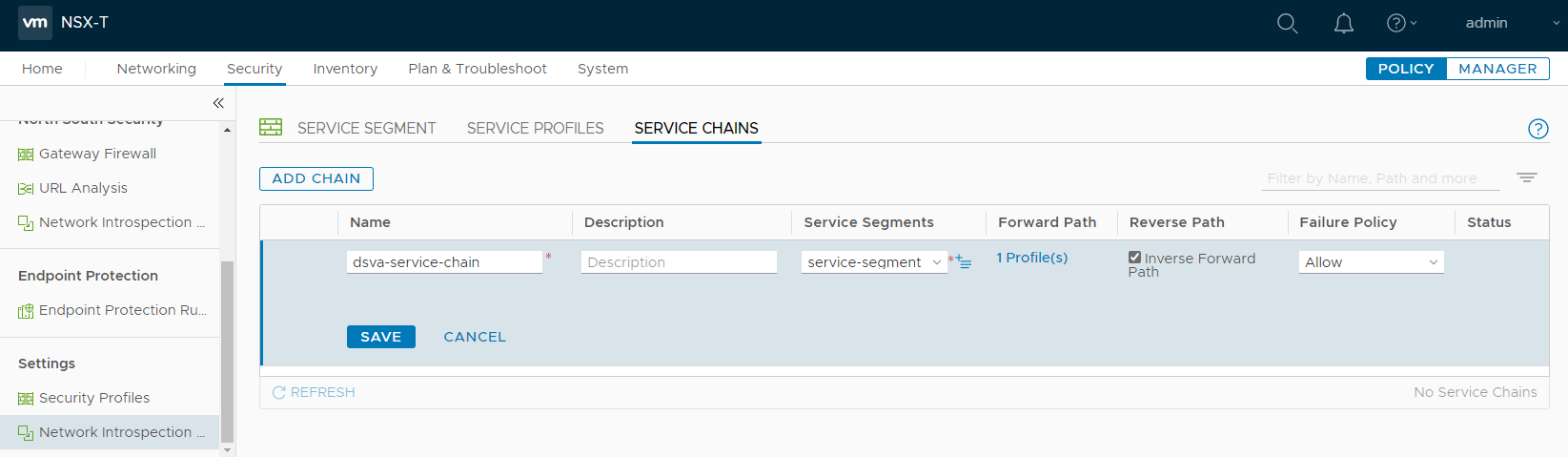

On the main pane, click the SERVICE CHAINS tab, and click ADD CHAIN. Fill out the fields as described in the following steps.
-
For the Name, specify a name. Example:
dsva-service-chain
. -
For the Service Segments, select the service segment created previously. Example: service-segment.
-
For the Forward Path:
-

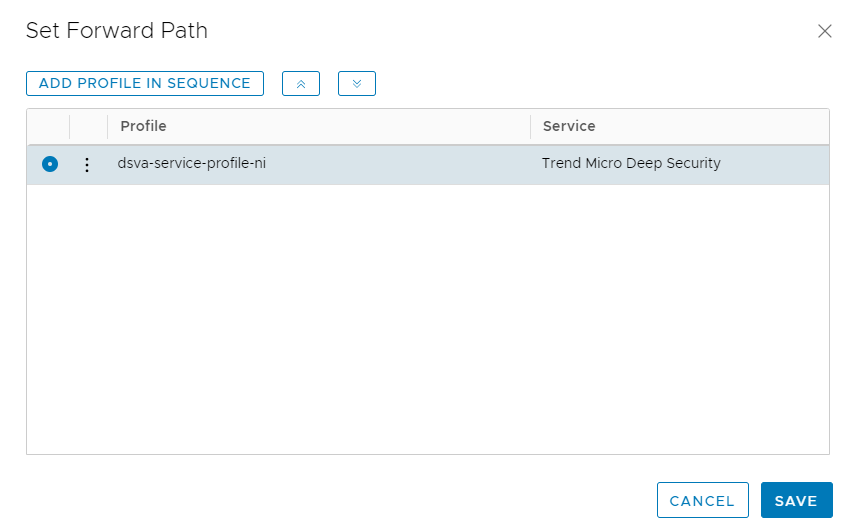

Click Set Forward Path to open the dialog box.
-
Click ADD PROFILE IN SEQUENCE and add the service profile created previously. In the example, we selected dsva-service-profile-ni.
-
Click ADD.
-
Click SAVE.
You're now back on the main SERVICE CHAINS page. Continue with the SERVICE CHAIN configuration below. -
-
For the Reverse Path, keep the Inverse Forward Path check box selected.
-

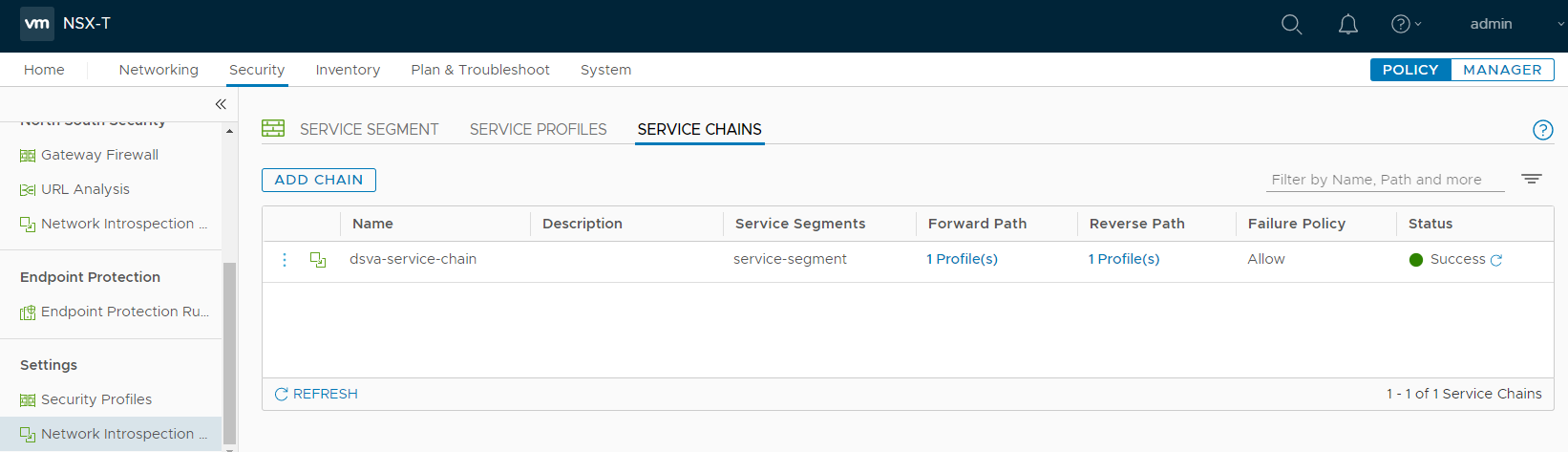

For the Failure Policy, select Allow.The service chain should now look like the following:
-
Click SAVE.
Add a Network Introspection policy
-
Click Security at the top, toggle to POLICY, and then on the left, find East West Security and click Network Introspection (E-W).
-
In the main pane, click + ADD POLICY.
-
In the Name column, click within the New Policy cell and change the name. For example, use
dsva-policy-ni
. For Redirect To, select the service chain. In this example, we used dsva-service-chain. -
Select the check box next to dsva-policy-ni and click + ADD RULE. A rule appears under dsva-policy-ni. Click + ADD RULE again because we need 2 rules.
-
Configure the 1st rule for inbound traffic:
-
For the Name, enter a name for the rule. Example:
rule-in
. -
For the Sources, keep Any.
-
For the Destinations, select dsva-protection-group.
-
For the Services, keep Any.
-
For the Applied To, select dsva-protection-group.
-
For the Action, select Redirect.
-
-
Configure the 2nd rule for outbound traffic:
-
For the Name, enter a name for the rule. Example:
rule-out
. -
For the Sources, select dsva-protection-group.
-
For the Destinations, keep Any.
-
For the Services, keep Any.
-
For the Applied To, select dsva-protection-group.
-
For the Action, select Redirect.

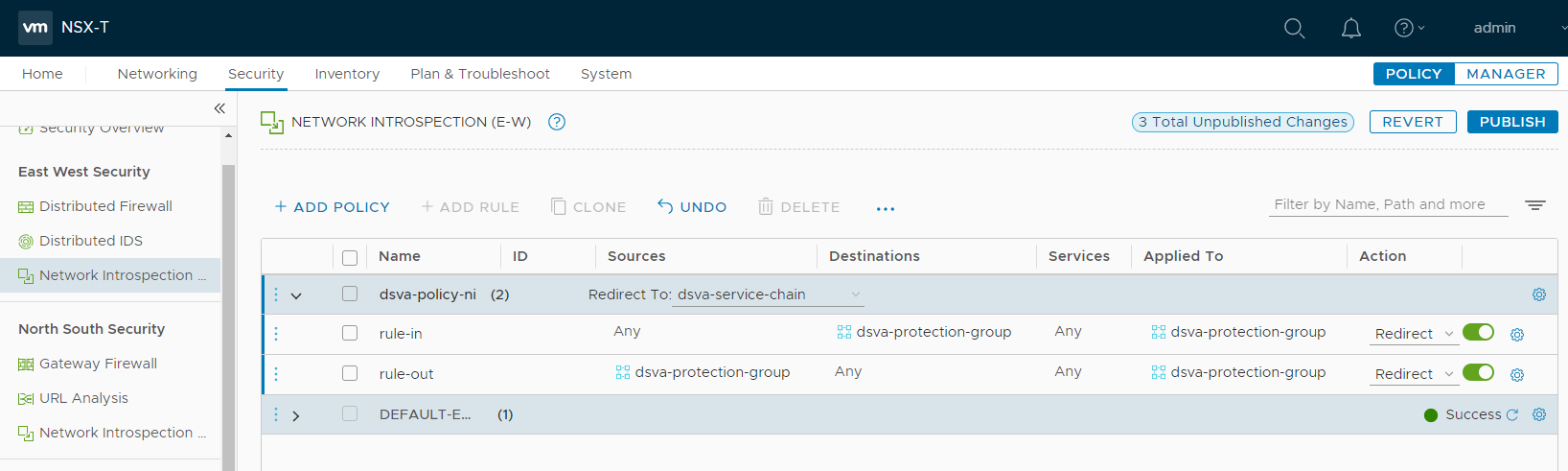

There is now a mapping between the VMs in the dsva-protection-group and the Default (EBT)_Network template specified in the dsva-service-chain.The policy should now look similar to the following: -
-

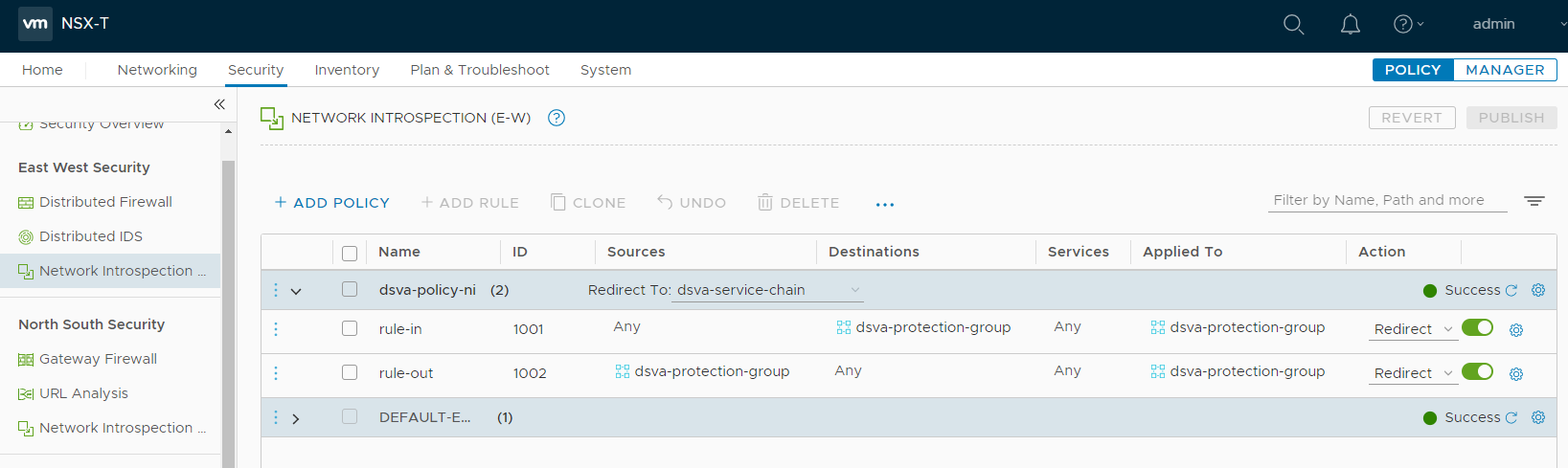

Click PUBLISH to finish the policy and rule creation.
Connect VMs to the logical switch
In order for the VMs in your group to be protected by east-west security in NSX-T,
those
VMs connected to the logical switch created in an earlier step.

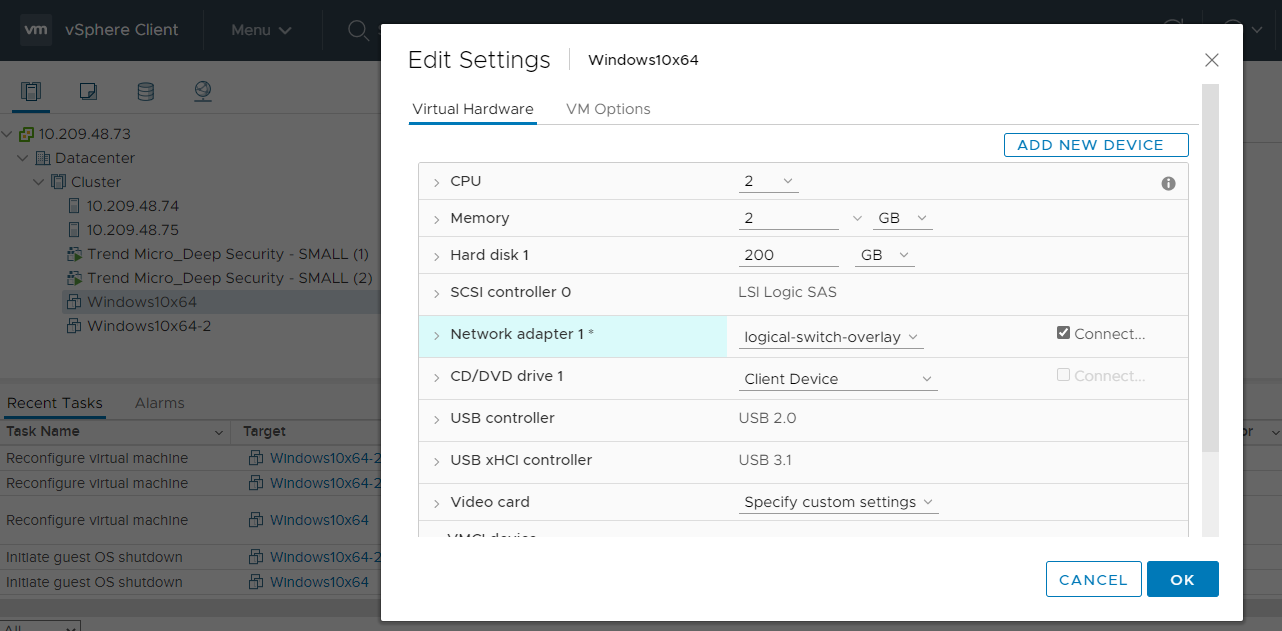

In the example, we connected the Network adapter 1 to logical-switch-overlay. You can check that your VMs are connected to this switch by accessing vCenter through
vSphere Client.

You have now configured east-west security in NSX-T.
