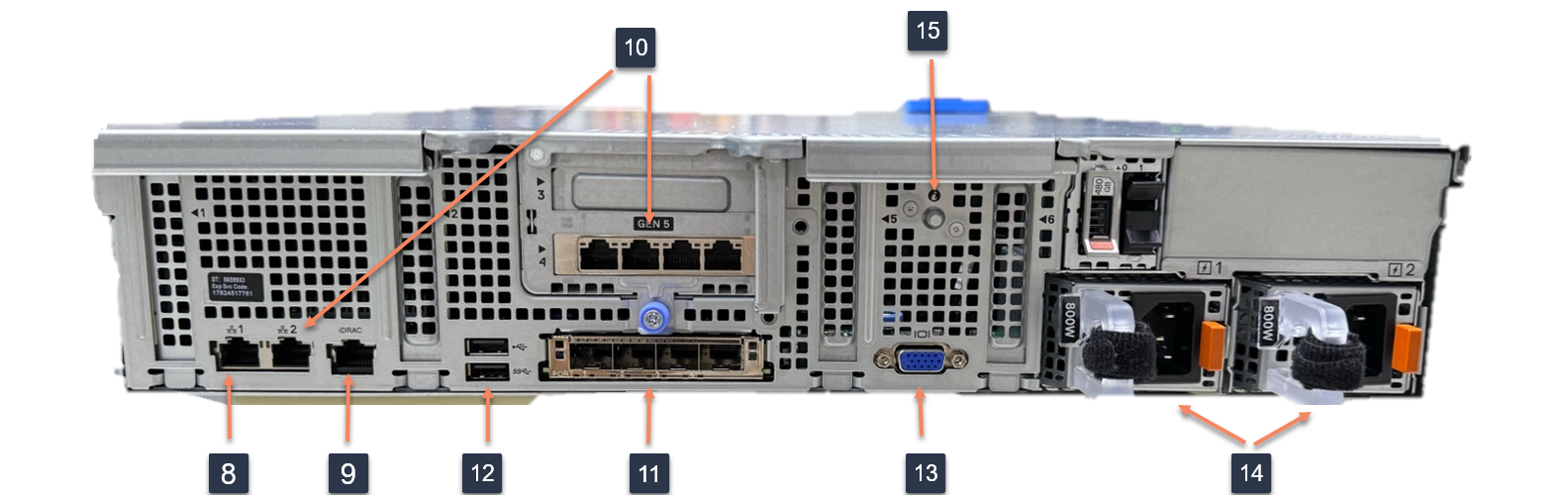

The following table outlines the back panel features of the 4330/9300 appliance.
|
#
|
Feature
|
Description
|
|
8
|
Management port
|
Connects to a management network for communication and interaction with other products
and services
|
|
9
|
iDRAC port |
Connects to a dedicated management port on an iDRAC card
|
|
10
|
1 Gbps data ports (5)
|
Integrated 10/100/1000 Mbps Base-T NIC connectors
|
|
11
|
10/25 Gbps data ports (4)
|
10/25 Gbps NIC connectors
|
|
12
|
USB connectors (2)
|
Allows you to connect USB devices to the appliance
|
|
13
|
Video connector
|
Allows you to connect a VGA display to the appliance
|
|
14
|
Power supply connectors (2)
|
Two hot-plug power supply units:
"Hot-plug" refers to the ability to replace the power supply while the appliance is
running. Deep Discovery Inspector automatically and safely recognizes the change without operational interruption or
risk.
For information about the wattage of the power supplies, check the appliance's labels.
Use the power cord included in the package (for details, see Package contents).
|
|
15
|
Appliance ID button / appliance status indicator
|
Not supported by Deep Discovery Inspector
|
