Procedure

1. Run setup.exe from the PortalProtect 2.6 to start the installation.

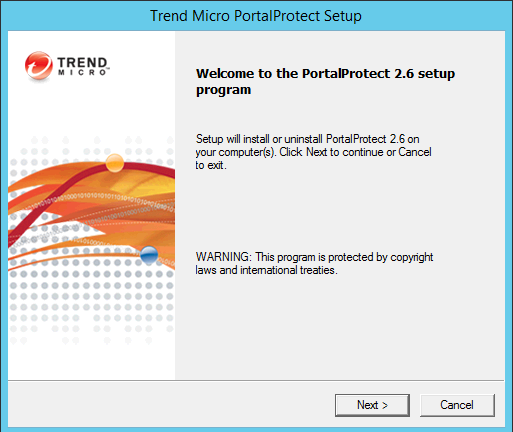

   The PortalProtect Installation Welcome screen appears.



2. Click Next >.

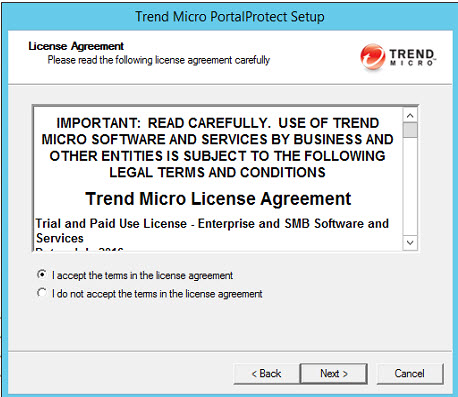

   The License Agreement screen appears.



3. Read the license agreement. If you accept the terms, select I accept the terms in the license agreement and click Next >. The setup program begins checking your system requirements. If you do not accept the terms, click Cancel to exit the setup program.

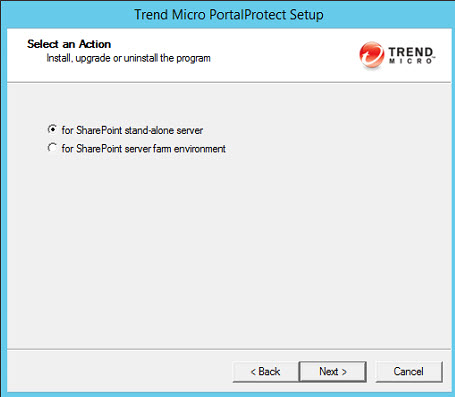

   The Select an Action screen (1) appears.



4. Choose one of the following installation options:
   • for SharePoint stand-alone server
   • for SharePoint server farm environment
5. After selecting the appropriate options, click Next >.

   Note Whether to select install for SharePoint stand-alone server or install for SharePoint server farm environment depends on your SharePoint deployment mode. If SharePoint will be deployed with farm mode, you must select for SharePoint server farm environment. Otherwise, if SharePoint will be deployed in the stand-alone mode (basic deployment) you should select for SharePoint stand-alone server.

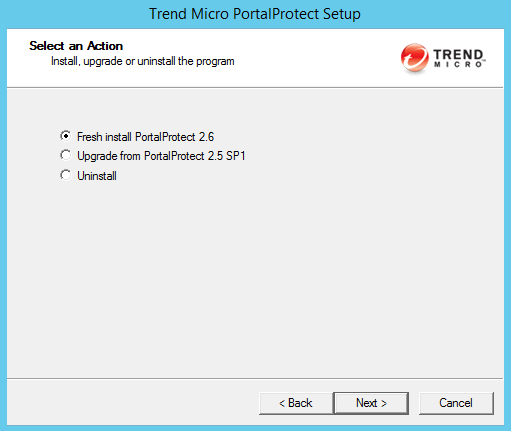

   The Select an Action Install, upgrade or uninstall PortalProtect screen appears.



6. After selecting the appropriate options, click Next >.

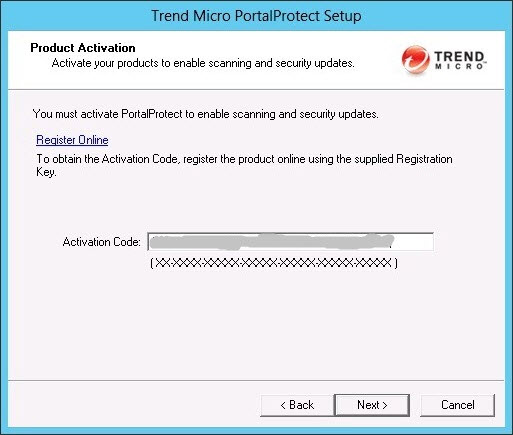

   The Product Activation screen appears.



7. Product Activation requires two steps:
   1. You must register PortalProtect online to receive an Activation Code. Click Register Online. This opens the Trend Micro online registration Web page in your browser. Follow the prompts to complete the registration. When you have registered, Trend Micro sends you an Activation Code via e-mail.
   2. Type the Activation Code and click Next > to proceed with the installation.

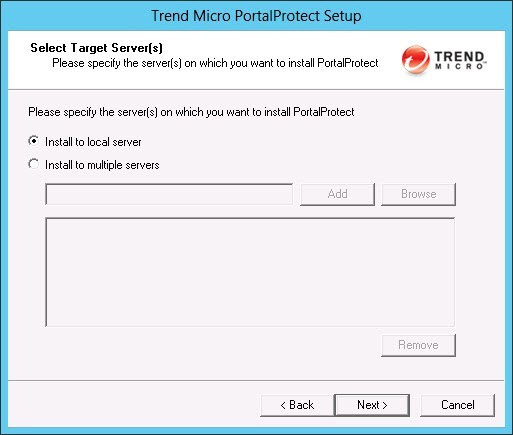

      The Select Target Server(s) screen appears.



8. Select from the following options:
   • Install to local server (recommended)—use to install to a local server. After selecting, click Next > to continue the installation.
   • Install to multiple servers (remote installation)—select and choose the target servers to which you want to install PortalProtect. Type or Browse for the Computer name, and Add one or more servers. When you are satisfied with the list of target servers, click Next > to continue the installation. You will be prompted to enter your remote server logon account information.

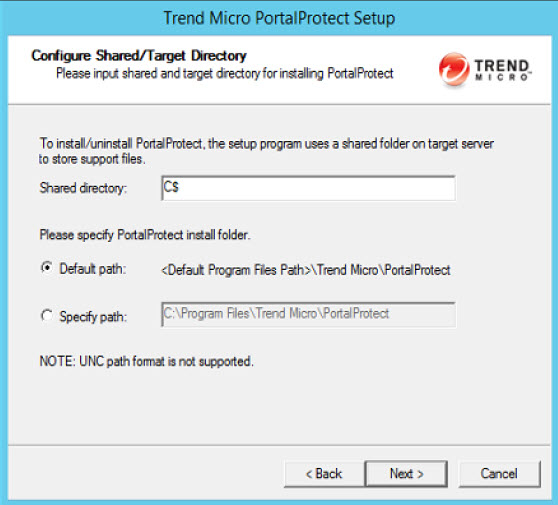

   The Configure Shared/Target Directory screen displays.



9. Accept the default path for the shared folder on the target server, or type a new path in the Specify path field. Click Next >.

   WARNING You must enter English-only characters in the Specify path field otherwise the installation will be unsuccessful.

   Note PortalProtect only accepts Windows default shares for Shared directories, such as C$, D$ and so on.

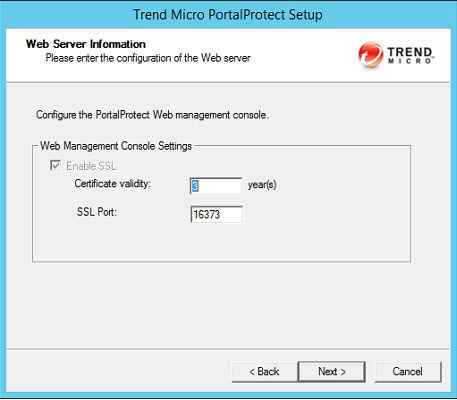

   The Web Server Information screen appears.



10. Type the SSL port number for the Web Management Console in the SSL Port field. Click Next >.
    The PortalProtect Configuration Database screen appears.



11. Select from the following options:
    • Specify PortalProtect configuration database location:
      • SharePoint SQL Server—installs PortalProtect to a SharePoint SQL server
      • User-defined SQL Server—installs PortalProtect to a user-defined SQL server

        Note To automatically create or use an existing PortalProtect configuration database, you must perform this installation from an account with dbcreator permission privilege. If the dbcreator role is not available, see PortalProtect Database Permission Requirements.

    • Authentication—choose from Windows Authentication or SQL Server Authentication

      Note Trend Micro strongly suggests using Windows Authentication.

    • User name—type as required
    • Password—type as required
12. Click Next >.

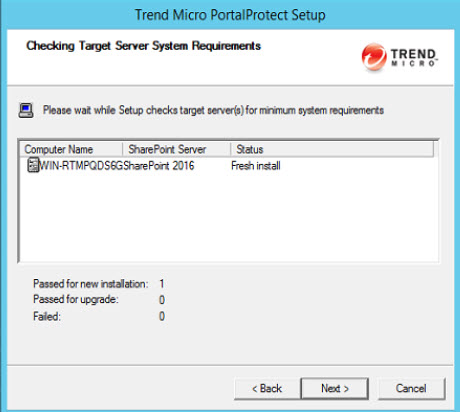

    The Checking Target Server System Requirements screen appears.



    The installation program will analyze the systems to ensure the following on each of the target servers where PortalProtect will be installed:

    • Whether the target server is running the correct version of Windows
    • Whether the target server is running correct SharePoint version with Web application
    • Whether the correct privileges have been provided to logon the target server
    • Whether the correct SharePoint DB access account is specified to access the SharePoint configDB
13. Verify the Status reads Fresh Install, and click Next >.

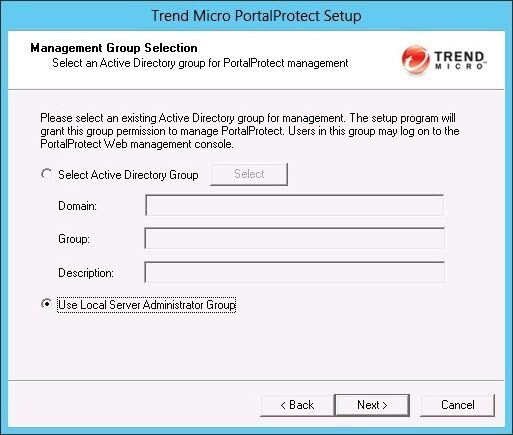

    The Management Group Selection screen appears.



    Note You must use an existing Active Directory group, or create a new one before you complete this step. If you select Use Local Server Administrator Group, accounts with administrator privilege on each target server can logon its own PortalProtect Management Console locally.

14. Select Use Local Server Administrator Group, if you do not wish to select an active directory group now, or do the following to choose an active directory group:
    Choose Select Active Directory Group and click Select to choose a pre-existing group; the Domain, Group, and Description fields then populate accordingly.
15. Click Next >.

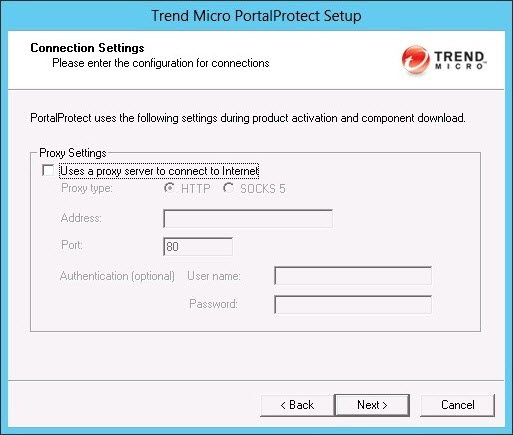

    The Connection Settings screen appears.



    If you use a proxy server, select Uses a proxy server to connect to Internet, and enter the following:

    • Proxy type—(HTTP or SOCKS 5)
    • Address—(IP)
    • Port—(Port number)
    • If your proxy server requires a password, type the User name and Password in the fields provided.
16. Click Next >.

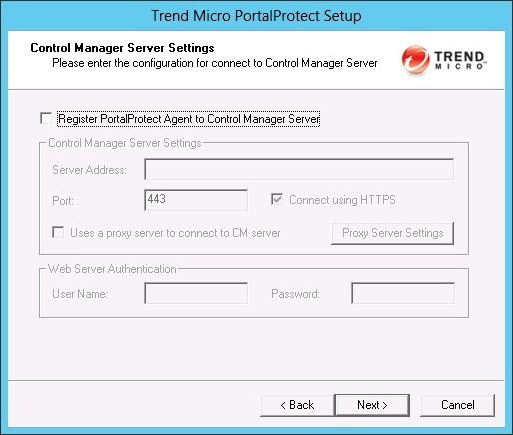

    The Control Manager Server Settings screen appears.



17. Click Next > to accept the default settings, or select Register PortalProtect Agent to Control Manager Server and enter the following:
    • Server Address
    • Port—Port number
    • Connect using HTTPS—(if desired)
    • If a proxy server is used, select Uses a proxy server to connect to CM server, and click Proxy Server Settings to modify. Refer to the Administrator’s Guide for more information.
    • If Web Server Authentication is required, type the User Name and Password.
18. Click Next >.

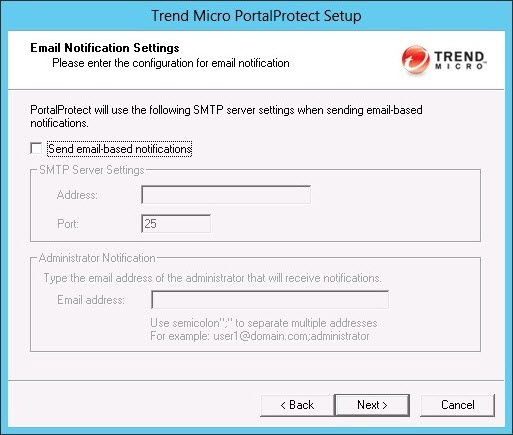

    The Email Notification Settings screen appears.



    If you wish to send email based notifications, enter the following:

    • Select, Send email-based notifications.
    • Type the SMTP server Address and Port.
    • To enable Administrator email notification, type the administrator(s) email address(es) in the Email address field. Use a semicolon to separate multiple addresses.
19. Click Next >.

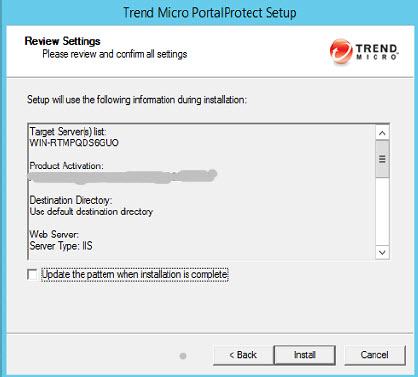

    The Review Settings screen appears.



20. Check the settings as they are displayed on screen, and go back to make any changes if needed. Click Update the pattern when installation is complete, if you wish to do so; then, click Install.

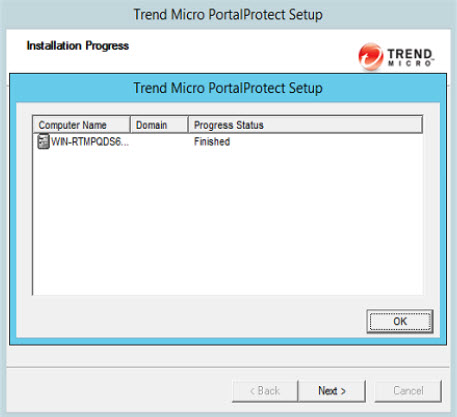

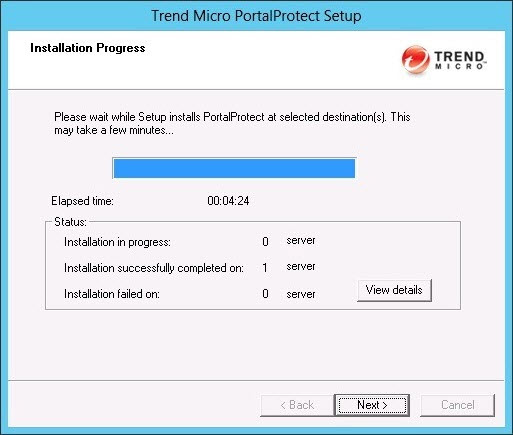

    The Installation Progress screen displays.



21. While the installation is active, click View details to check the status.



22. After the installation status displays Finished, click Next >.

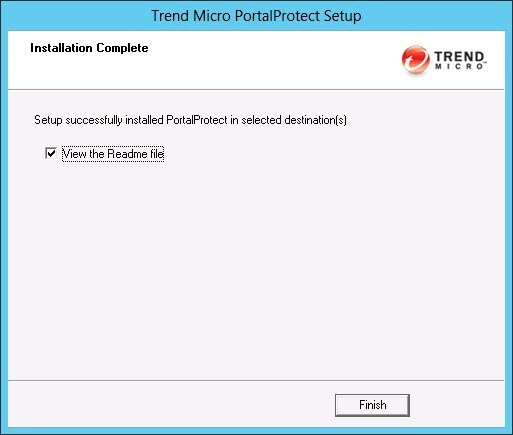

    The Installation Complete screen appears.



23. Select View the Readme file, if you wish to view it, and Finish to complete the installation.
