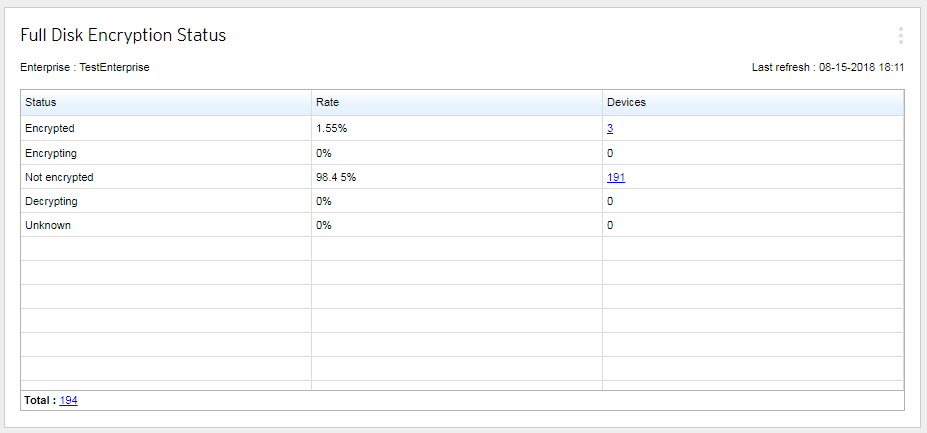

The Full Disk Encryption Status widget shows the current encryption status of any device on your network.
Column
Description
Status
The status of the endpoint. Statuses include:
  • Encrypted: The endpoint is 100% encrypted.
  • Encrypting: The endpoint is currently encrypting the hard disk. The status changes to Fully Encrypted once encryption completes and the endpoint restarts.
  • Not encrypted: The endpoint is 0% encrypted.
  • Decrypting: The endpoint is currently decrypting the hard disk. The status changes to Not Encrypted once the decryption completes and the endpoint restarts.
  • Unknown: The endpoint is synchronized, but PolicyServer cannot determine the encryption status.
Rate
The percentage that the endpoint is encrypted.
Devices
The number of endpoints with that current status. Click the number to view the Endpoint Encryption Devices report.
Note
Note
At the bottom of the widget, click the number next to Total to view the Full Disk Encryption Status report.
Related information

Full Disk Encryption Status Report

The following table describes the Full Disk Encryption Status report. Use it to understand how to read the report details.

Full Disk Encryption Status Report Example

Header
Example
Description
Policy
GP1
The title of the policy controlling the endpoint.
Device Name
TREND-4136D2DB3
The computer name used by the endpoint.
Device ID
1fabfbff-0001-06e5-000c-297085710000
The unique ID established after the Security Agent was installed on the endpoint and a new endpoint was registered with PolicyServer.
Agent
Full Disk Encryption
The currently installed Security Agent.
Status
Not Encrypted
The current state of the endpoint.
Last Synchronized Date
10/07/2013 11:05 am
The timestamp when the endpoint last updated policies from PolicyServer.
Last Policy Enforcement
10/07/2013 11:05 am
The timestamp when the Apex Central last enforced policy changes on PolicyServer.
