Accessing the Console Flyover

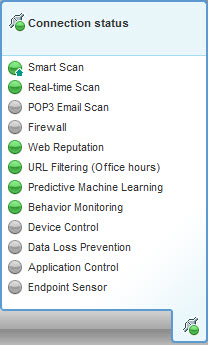

The Security Agent Console Flyover opens when you hover your mouse pointer over the small icon on the bottom right of the Security Agent console.
|
Feature |
Icon |
Meaning |
|---|---|---|
|
Connection |
|
Connected to the Worry-Free Business Security Services server |
|
|
Not connected to the Worry-Free Business Security Services server, but real-time scan is still running. The pattern file may not be up to date. Right-click the agent icon in the Windows Task Bar and click Update Now. |
|
|
Smart Scan |
|
Connected to the Scan Server |
|
|
Connected to Trend Micro Smart Protection Network |
|
|
|
Unable to connect to the Scan Server or Smart Protection Network; protection is reduced as Security Agents are unable to send scan queries. Note:
Verify that the Smart Scan service TMiCRCScanService is running and that Security Agents are connected to the Worry-Free Business Security Services server. |
|
|
|
Smart Scan is disabled. Using Conventional Scan |
|
|
Application Control |
|
On |
|
|
Lockdown in progress: Application Control is scanning the endpoint to create a complete application inventory. |
|
|
|
Lockdown: Only applications installed during the last inventory scan or that the administrator added to an Allowed rule can execute |
|
|
|
Off |
|
|
All other features |
|
On |
|
|
Off |
