Example: Full-Mesh Site-to-Site VPN

In the following example, three Cloud Edge gateways are used to create a full-mesh site-to-site VPN configuration.

Configuration Summary

Device names: CE1, CE2, and CE3

  • In CE1, set up two connections, one to each of the other devices: CE1 to CE2, CE1 to CE3

  • In CE2, set up two connections, one to each of the other devices: CE2 to CE1, CE2 to CE3

  • In CE3, set up two connections, one to each of the other devices: CE3 to CE1, CE3 to CE2

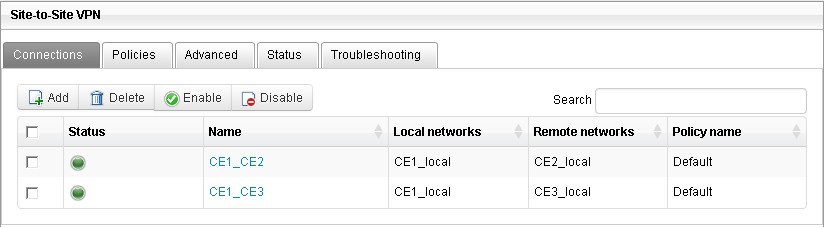

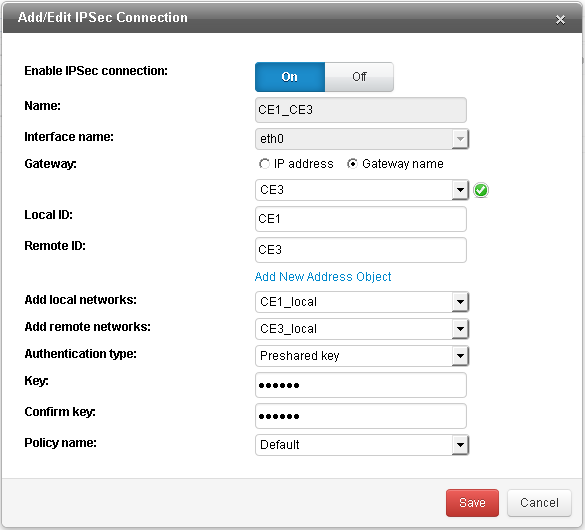

Configuration on CE1



Configuration on CE2 and CE3

Connections for the CE2 and CE3 gateways are configured similarly to CE1.
