Configuring Trend Cloud One

Find out how to connect and configure your Trend Cloud One services to start sharing data with Trend Vision One.

To begin receiving data from Trend Cloud One, you must first connect Trend Cloud One from Product Connector and enable the services you require.

Note:

If you encounter any issues attempting to connect Trend Cloud One with Trend Vision One, check that you have the correct license provisioned. Contact your support provider for more information.

Important:

Trend Micro recommends that you disconnect any previous Trend Cloud One - Endpoint & Workload Security connections before connecting Trend Cloud One. You must complete this step if you want to SSO to Endpoint & Workload Security.

  1. Copy the enrollment token used in the Trend Cloud One console to identify your Trend Vision One console.
    1. In the Trend Vision One console, go to Point Product Connection > Product Connector.
    2. Click Connect.
    3. Select Trend Cloud One.
    4. Click the Click to generate the enrollment token link.
    5. Copy the enrollment token.
  2. Use the enrollment token to integrate your Trend Cloud One environment with Trend Vision One.

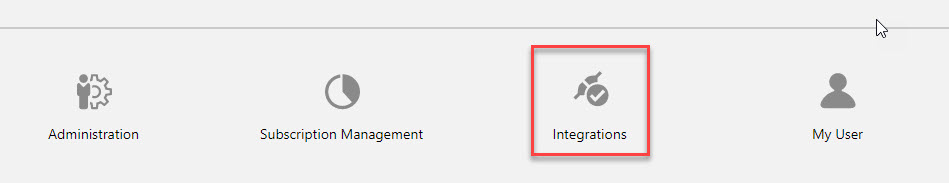

    1. Open your Trend Cloud One console and click Integrations at the bottom of the screen.
    2. Click Trend Vision One™ on the navigation bar.
    3. In the Enrollment Token section, click Register enrollment token.
    4. Paste the enrollment token and click Register.
      Note:

      After successful registration, Trend Cloud One - Endpoint & Workload Security automatically enables Forward activity logs to Trend Micro XDR and changes the Enrollment Status to "Registered".

    5. For customers that want to allow SSO from Trend Vision One to Trend Cloud One - Endpoint & Workload Security, enable the Single Sign On from Trend Vision One toggle and click Save.
  3. In the Trend Vision One console, enable the connections to your Trend Cloud One services.
    1. Go to Point Product Connection > Product Connector.
    2. Click Trend Cloud One.
    3. Enable the Trend Cloud One services you want to connect.

      • Endpoint & Workload Security

      • Application Security

      • AWS CloudTrail

      • Network Security

    4. Click Save.
  4. (Optional) Enable Activity Monitoring on Deep Security Agents.
    1. Go to Policies, select a policy and click Details.
    2. Go to Activity Monitoring > General.
    3. Set the Activity Monitoring State to On.
    4. Click Save.
