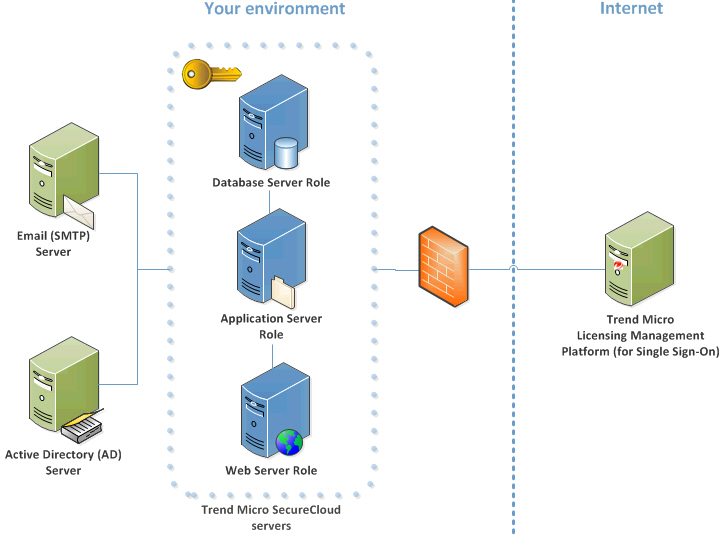

Each SecureCloud server role
is separated and installed on a different host

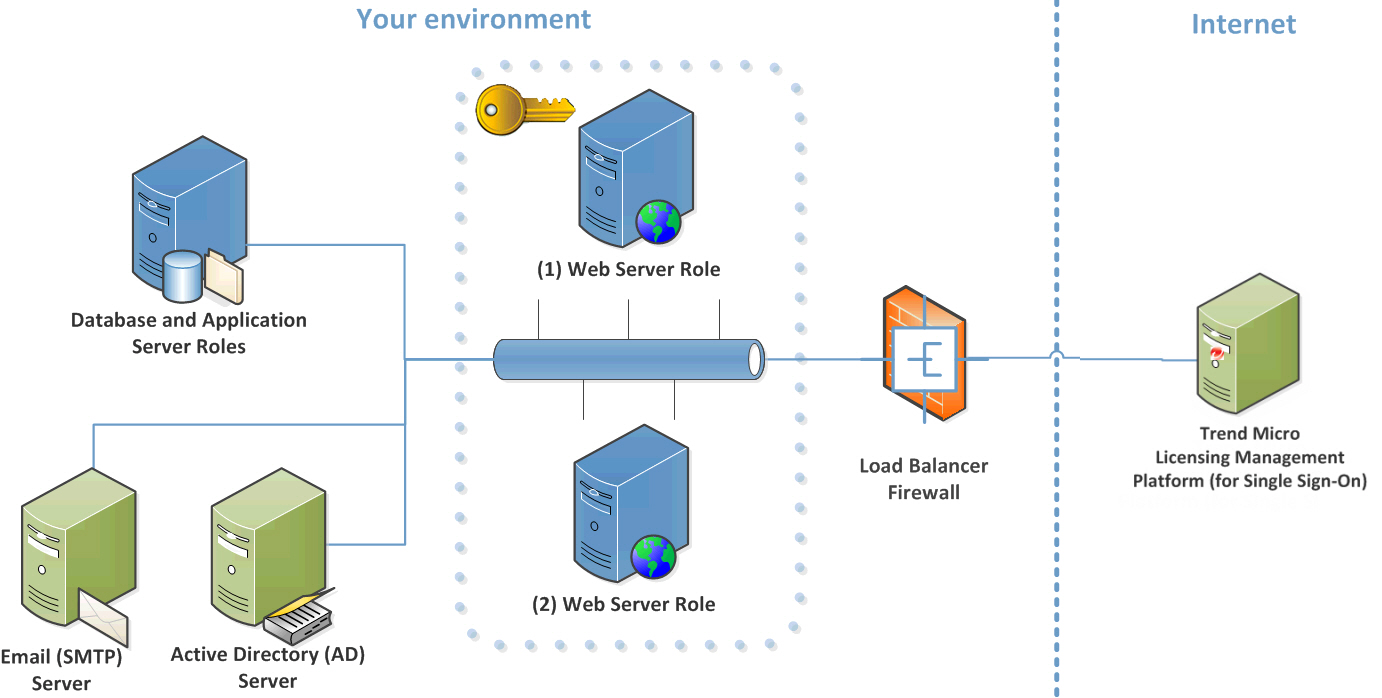

Database and Application server roles
are deployed to one host; While multiple web server roles can provide
high availability and load balancing
In an environment with multiple web server roles, ensure that
the mapping IP address and host header information are added to
the host file.

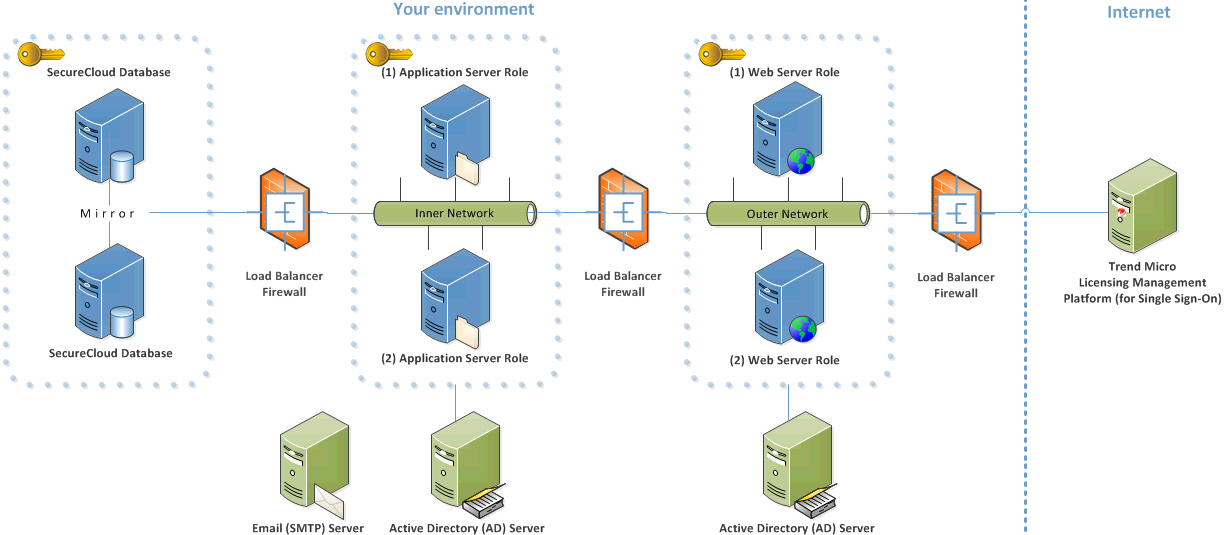

Multiple Database, Application, and
Web server roles
 |
Note
The Trend Micro SecureCloud HsXP solution is similar to
this example.
|
In an environment with multiple app and web server roles, set
the host header when installing the app server. Consequently, ensure
that the mapping IP address and host header information are added
to the host file.
